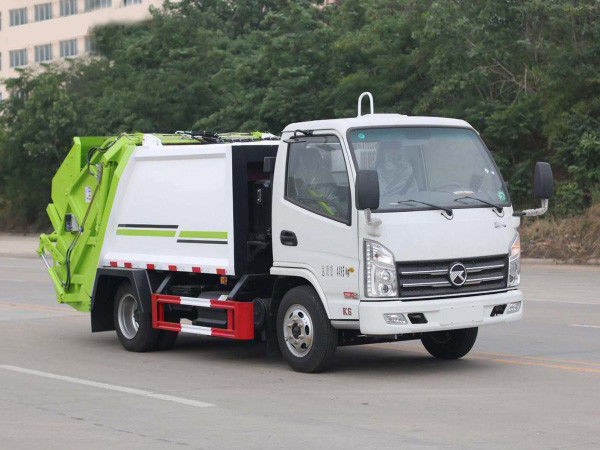

4 Cubic Compression Garbage Truck With Box Structure

Product Details

Place of Origin: Shandong, China

Brand Name: Dongfeng

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: US$4,960-US$5,600

Payment Terms: L/C,D/A,D/P,T/T

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                4 Cubic compression garbage truck, Box Structure compression garbage truck, 4m3 compression garbage truck


Feature:	Self Unloading	Body Material:	Steel
Dumping Method:	Rear Tipping	Wheel:	4
Steering Type:	Power Steering	Condition:	New
Operating System:	Hydraulic	Power Source:	Diesel
Warranty:	1 Year	Load:	500L
Compaction Ratio:	1:3	Model:	GCV-100
Other Name:	Waste Collection Truck	Seat:	One
Weight:	5 Tons

Feature:	Self Unloading
Body Material:	Steel
Dumping Method:	Rear Tipping
Wheel:	4
Steering Type:	Power Steering
Condition:	New
Operating System:	Hydraulic
Power Source:	Diesel
Warranty:	1 Year
Load:	500L
Compaction Ratio:	1:3
Model:	GCV-100
Other Name:	Waste Collection Truck
Seat:	One
Weight:	5 Tons

Product Description

1. Box structure The trash can adopts a sturdy frame structure welded with reinforcing beams and high-strength steel plates. The sides are made of a single plate and do not require a longitudinal welding process. The upper and lower reinforcing beams of the side plate are integrally formed with the side plates, and special equipment is used for cold bending. Large R angle molding improves rigidity. There is no weld in the longitudinal direction of the side plate, which effectively avoids the defects such as weld fatigue failure caused by long-term use of traditional welding technology. The top surface is an arc surface, and the bottom plate and side plate of the box are welded by advanced welding technology, which avoids water leakage caused by long-term use of traditional welding technology. A large-capacity sewage collection tank is provided at the lower part of the front of the box to improve the sewage storage capacity of the vehicle. The overall box has beautiful appearance, light weight, good stress and is not easy to deform.

2. The dozer assembly is welded by a rectangular steel pipe frame and a bent plate. Adjustable sealing strips are installed on both sides and top of the dozer blade to ensure the gap between the dozer blade and the box. It is not only lightweight in structure, but also evenly distributes garbage and unloads cleanly and thoroughly.

3. The packing assembly is mainly composed of packing shell, sliding plate, scraper and other parts. The filling slide rail is made of high-strength wear-resistant material cold-bent, and the lower arc plate is made of high-strength wear-resistant material. There is a leak on the arc plate, which is convenient for the sewage inside the filler to flow into the lower sewage storage tank to avoid sewage leakage during transportation. A large-capacity sewage storage tank is provided at the bottom of the filler, and the sewage tank has two large-diameter sewage outlets; The two sides of the skateboard are made of integral nylon sliders, which are self-lubricating, with high stability and better wear resistance; The stressed part of the scraper has been partially reinforced, and the structure is strong and lightweight.

4. The turning mechanism is welded by bent materials and profiles, with a firm structure and beautiful appearance. The stressed parts such as the cylinder bracket, the trash can lifting assembly, the bucket guide plate, the connecting rod bracket and other stressed parts are all made of cast steel, which has a firm structure and is not easy to break.

Box effective volume	4 cubic meters
Box shape	arc
Cabinet material	4mm on the side and 4mm on the bottom
Cabinet material	T420 (Special Steel)
Compression ratio	≥2.5
Effective volume of filler	≥ 0.8 cubic meters
Filling cycle time	≤25 seconds
Off-the-splendor garbage time	≤45 seconds
How to do it	Automatic, manual
Hydraulic system pressure	18MPa
Multi-way directional valves	Hunan Honghui / Yangzhou Zhongmei
Hydraulic oil pump	Hefei Changyuan
Hydraulic cylinders	Hai Zhanli / Xiamen Yinhua / Yantai Future
Youku	Milky Way
Solenoid valves	Bailing pneumatic
Control system	CAN-BUS bus control system
Lifting cylinder balance valve	Imported from Italy
Flip mechanism	Standard: 2 x 240L flipping mechanisms A variety of working devices are available
